Are you looking to restrict access to your Kubernetes application to authenticated users, without modifying a single line of your application’s code? If so, wonderful, you’re in the right place.

Here’s the plan:

Deploy nginx to represent the application we want to secure.
Create an OAuth Client in the Google API Console.
Configure OAuth2Proxy to manage authentication seamlessly on our behalf.

Let’s get started. ✨

Step 1: Deploy Nginx

Let’s deploy nginx. To do so, run these two commands:

kubectl create deployment nginx --image nginx --port 80
kubectl expose deployment nginx

If you don’t like the imperative approach, you can apply this manifest:

apiVersion: apps/v1
kind: Deployment
metadata:
  creationTimestamp: null
  labels:
    app: nginx
  name: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  template:
    metadata:
      creationTimestamp: null
      labels:
        app: nginx
    spec:
      containers:
        - image: nginx
          name: nginx
          ports:
            - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  creationTimestamp: null
  labels:
    app: nginx
  name: nginx
spec:
  ports:
    - port: 80
      protocol: TCP
      targetPort: 80
  selector:
    app: nginx

Step 2: Get your Google API client ID

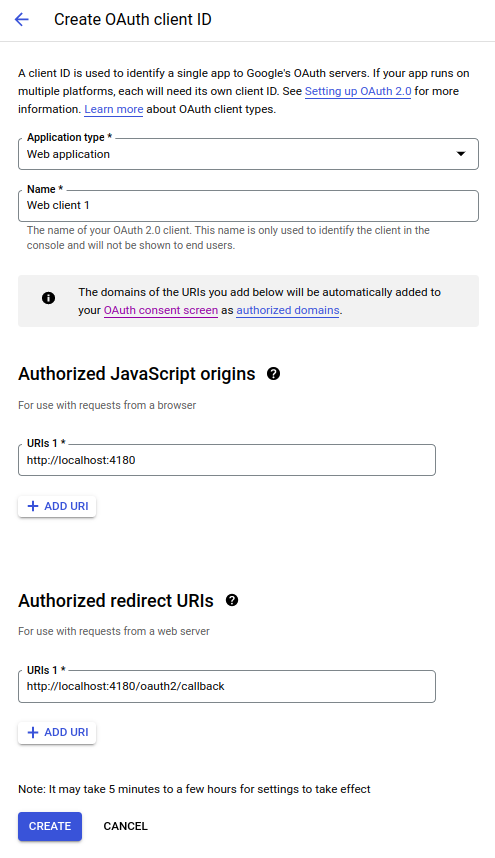

Follow the steps described in this post from Google with this configuration:


The creation of the OAuth2 Client ID will prompt two values: the Client ID and the Client Secret.
Store them, we will need them on the next step.

Step 3: Deploy OAuth2Proxy

OAuth2Proxy stores session data within an encrypted cookie. The key used to perform this encryption is referred to as the cookie secret.

Let’s generate a strong cookie secret, following the recommendation of the documentation: dd if=/dev/urandom bs=32 count=1 2>/dev/null | base64 | tr -d — ‘\n’ | tr — ‘+/’ ‘-\_’; echo

Deploying the service

Apply the manifest below, making sure to replace the placeholders with your generated cookie secret, and the values obtained in Step 2.

apiVersion: apps/v1
kind: Deployment
metadata:
  creationTimestamp: null
  labels:
    app: oauth2-proxy
  name: oauth2-proxy
spec:
  replicas: 1
  selector:
    matchLabels:
      app: oauth2-proxy
  template:
    metadata:
      creationTimestamp: null
      labels:
        app: oauth2-proxy
    spec:
      containers:
        - name: oauth2-proxy
          image: quay.io/oauth2-proxy/oauth2-proxy:v7.3.0
          args:
            - --cookie-secret=<COOKIE_SECRET_HERE>
            - --client-id=<CLIENT_ID_HERE> # This value usually finish with ".apps.googleusercontent.com"
            - --client-secret=<CLIENT_SECRET_HERE>
            - --http-address=0.0.0.0:4180
            - --email-domain=*
            - --redirect-url=http://localhost:4180/oauth2/callback
            - --upstream=http://nginx
          ports:
            - containerPort: 4180
---
apiVersion: v1
kind: Service
metadata:
  creationTimestamp: null
  labels:
    app: oauth2-proxy
  name: oauth2-proxy
spec:
  ports:
    - port: 4180
      protocol: TCP
      targetPort: 4180
  selector:
    app: oauth2-proxy

Testing the workflow

Let’s expose OAuth2Proxy to the outside world:
kubectl port-forward services/oauth2-proxy 4180:4180

Open your browser on http://localhost:4180
You will be magically prompted your google credentials before accessing nginx.

Happy coding ! ✨
